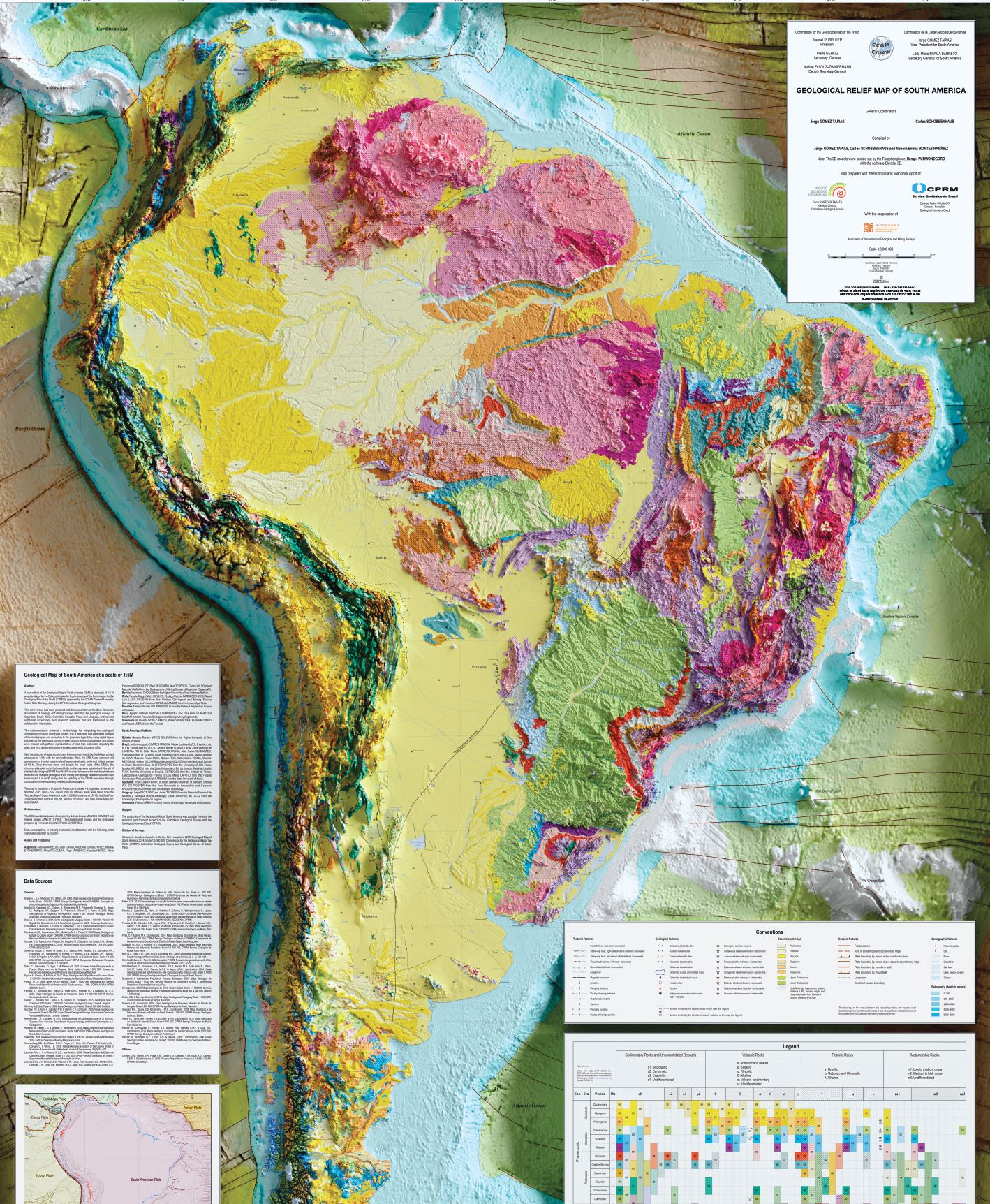

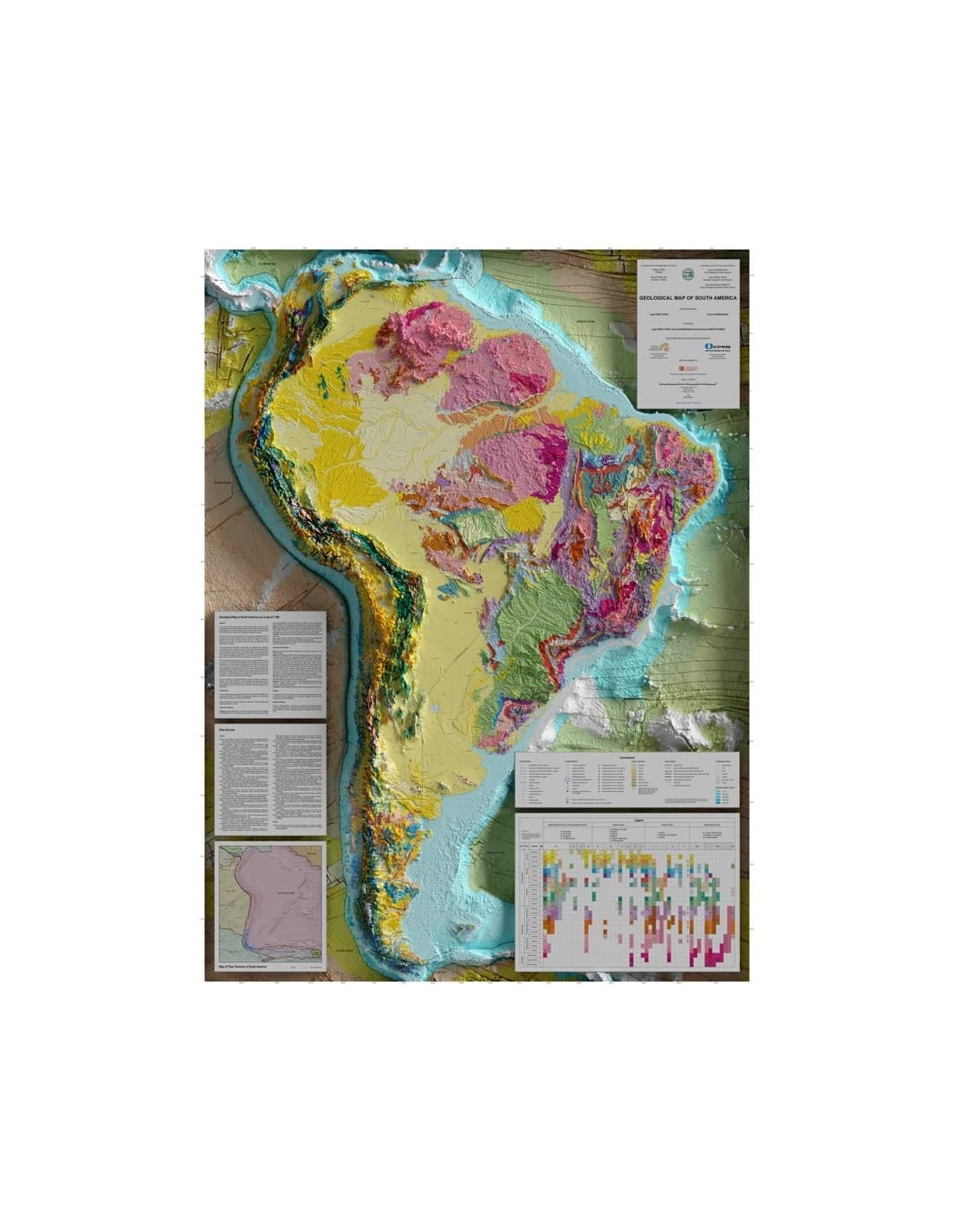

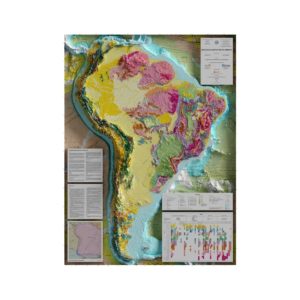

Geological relief map of South America

27,00

Geological relief map of South America
2D printed paper map
2022
Scale: 1:5,000,000
Projection: polyconics
Card size: 128 x 96 cm (1 sheet)
Co-publication CCGM - Servicio Geológico Colombiano - CPRM Serviço Geológico do Brazil (2022) - ASGMI
Compiled by Jorge GÓMEZ TAPIAS, Carlos SCHOBBENHAUS and Nohora Emma MONTES RAMÍREZ.

 STRM: Shuttle Radar Topography Mission
 General Bathymetric Chart of the Oceans
 DEM: Digital Elevation Model


Availability: In stock

Secure payment guaranteed

Description

Geological relief map of South America

The process of elaborating the 3D models is carried out with the Blender 3D software. It is a modelling tool that allows a schematic representation through a set of objects and elements, shadows and textures added to an initial 3D surface generated with a DEM (GEBCO). The work, when rendered, would become a 3D image, which will have a resolution of 90 arc seconds (STRM90).

La Carte géologique en relief de l’Amérique du Sud en relief correspond à la nouvelle édition de la Carte géologique de l’Amérique du Sud de 2019 (GMSA), à échelle de 1/5 M, a été élaborée par la sous-commission de l’Amérique du Sud pour la Commission de la Carte Géologique du Monde (CCGM). Elle a été approuvée par l’Assemblée Générale de la CCGM tenue à Oslo (Norvège), lors du 33e Congrès International de Géologie.

Cette troisième version de la Carte géologique en relief de l’Amérique du Sud a été préparée avec la coopération de l’Association des Services Géologiques et Miniers Ibéro-américains (ASGMI), les Services Géologiques de l’Argentine, du Brésil, du Chili, de la Colombie, de l’Équateur, du Pérou et de l’Uruguay, ainsi que plusieurs universités et instituts de recherche supplémentaires, mentionnés dans les informations des collaborateurs.

The sub-commission adopted a methodology integrating the geological information of each country in the following way. Firstly, a new code was generated for each chronostratigraphic unit according to the proposed legend, using digital layers provided by the geological surveys of each country. Secondly, symbology and colours were created with patterns representative of the rock types and colours corresponding to the ages. Finally, a map with coded units was prepared at a scale of 1/5 M.

In order to generalise and link the units by hand, the GMSA was printed at a scale of 1/3 M with the new coding. The GMSA was then digitised and georeferenced to generalise the geological units, faults and folds at a scale of 1:5M. Once this was done, and despite the small scale of the map, the chronostratigraphic units, faults and folds on the map were adjusted using shaded relief imagery (NASA STRM) to improve the match between relief and mapped geological units. Finally, the geology between countries has been harmonised. It should be noted that the updating of the GMSA was carried out by consulting internationally indexed published articles.

La Carte géologique en relief de l’Amérique du Sud est basée sur une projection polyconique (latitude × longitude), centrée sur le méridien –59°, datum WGS – 1984. Les données concernant les zones extracôtières ont été extraites de la carte tectonique de l’Amérique du Sud à une échelle de 1/5,9M (Cordani et al., 2016); la Topographie des Fonds Marins de la grille GEBCO 08, version 20100927; et la grille d’âge de la croûte : NCEI / NOAA.

Additional information

Weight 0,165 kg
Dimensions 128 × 96 cm
