Morpho-Bathymetric Map of the Eastern Mediterranean-PDF


Morpho-Bathymetric Map of the Eastern Mediterranean-PDF

1st edition 2015
Scale: 1:650,000
Projection: Mercator (N 38°)
Dimensions: 119 x 85 cm
Authors: Laëtitia Campistron-Brosolo and Jean Mascle
With the support of INSU/CNRS Mistrals project


Availability: In stock

Secure payment guaranteed


Morpho-Bathymetric Map of the Eastern Mediterranean-PDF

.pdf version sent by download link.

Note This card is subject to a licence agreement.

This map is also available in digital .pdf format in our catalogue.

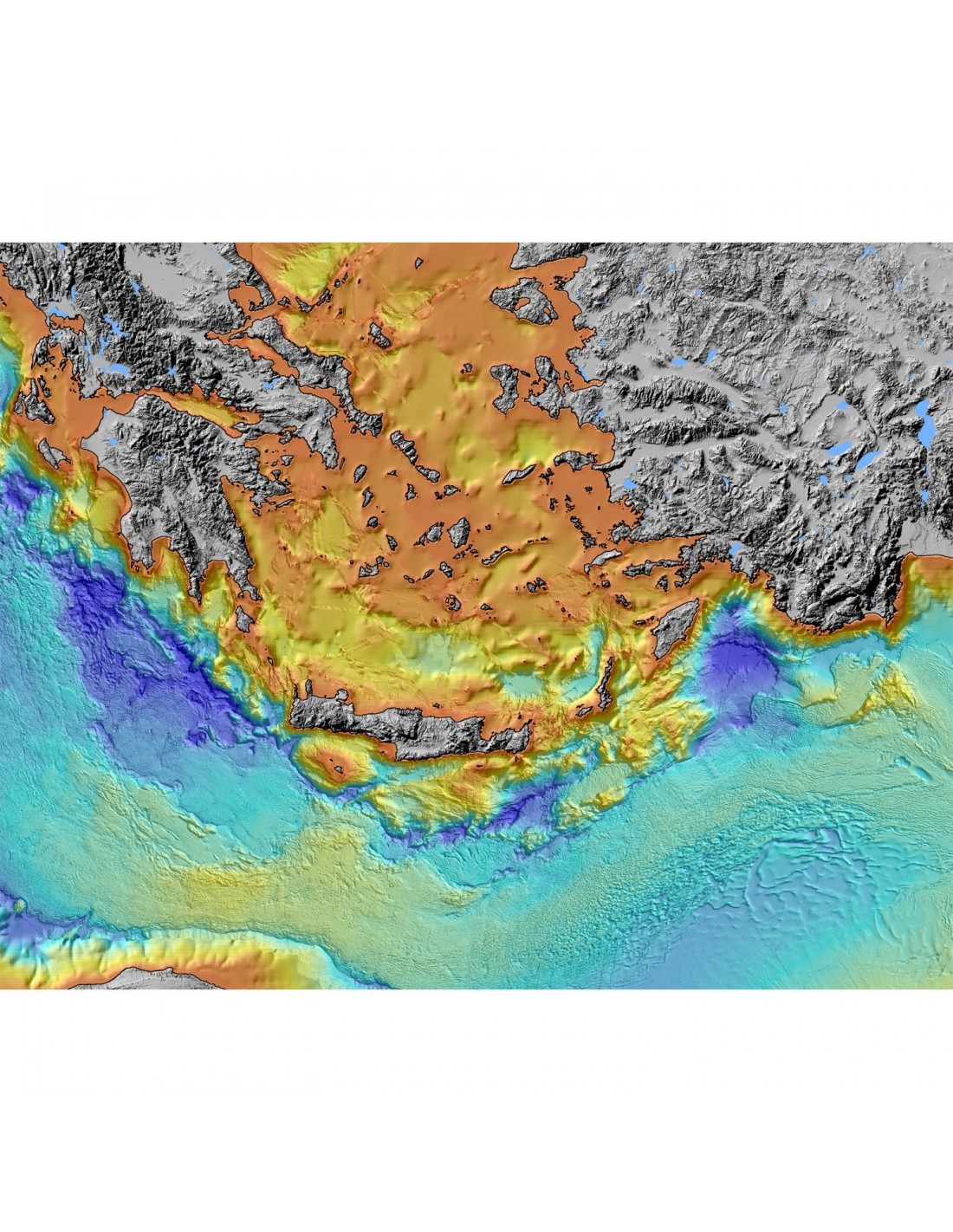

This morpho-bathymetric synthesis of the Eastern Mediterranean has been constructed from a 100m Digital Terrain Model (DTM) based on bathymetry data from various vessels of peri-Mediterranean institutes and agencies, acquired from often different multibeam systems. Nevertheless, it can be estimated that beyond water depths of 2000m, more than 90% of the basin floor could be mapped in detail by these systems.

The map was essentially constructed to illustrate, through these precise data, the variety of active geological processes (sedimentary, tectonic, fluid escape, magmatic) that shape and leave their spectacular footprints on the seabed of the eastern Mediterranean basin.

The graphical choices favour the detailed representation of the morphologies resulting from these processes in the four major geologically active domains of the basin from west to east: a) the Calabrian Prism (north of the Ionian Sea), b) the Mediterranean Wrinkle (central domain), c) the Nile Cone (north of the Egyptian coast) and d) Mount Eratosthenes (south of the island of Cyprus)

Outside the areas covered by this DTM, the map was completed with data from GEBCO ( and the EMODNET project (

Several artefacts from the use of these data (e.g. grid visibility) are detectable over most of the continental margin areas not mapped by multibeam systems, as well as in the southern Adriatic Sea.

Furthermore, it was not possible to systematically correct all the non-linear Z-shift faults between the various 100m DTM datasets; these faults result either from the juxtaposition of data from different multibeam mapping systems (e.g. sounders operating at different frequencies), or from non-identical corrections to the speed of sound in water.
